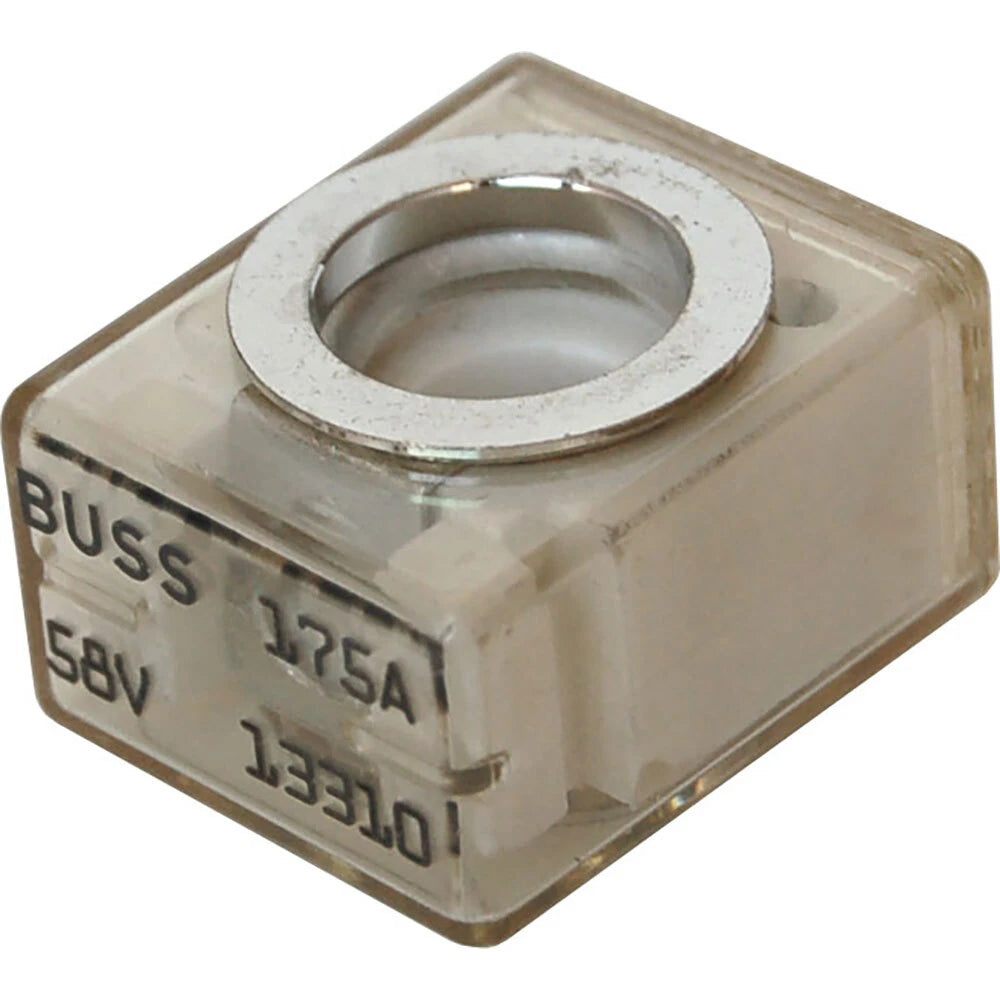

Blue Sea Systems 5186 Battery Terminal Fuse 175-AMP, white

Product Description:

The Blue Sea Systems 5186 Battery Terminal Fuse is a high-performance, 175-amp fuse designed for protecting DC circuits in marine, RV, and off-grid electrical systems. This fuse is ignition-protected, making it safe for use aboard gasoline-powered vessels. It features a clear window for visual indication of a blown condition and is color-coded for easy amperage identification. Please note that this fuse must be used with a compatible terminal fuse block, such as the Blue Sea Systems 5191 or 2151, and should not be mounted directly to the battery terminal.

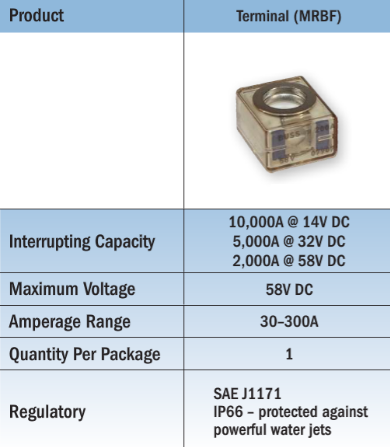

Key Features:

• Amperage Rating: 175A

• Maximum Voltage: 58V DC

• Interrupt Capacity: 10,000A @ 14V DC, 5,000A @ 32V DC, 2,000A @ 58V DC

• Ignition Protected: Yes (safe for installation aboard gasoline-powered boats)

• Visual Indicator: Clear window for blown fuse indication

• Color Coding: White (for 175A)

• Mounting Compatibility: Requires use with terminal fuse blocks PN 5191 or PN 2151

• Certifications: Meets ABYC requirements for DC main circuit protection on large battery banks

Specifications:

• Length: 1.09 inches (27.7 mm)

• Width: 0.64 inches (16.3 mm)

• Height: 0.906 inches (23.0 mm)

• Weight: 0.06 lb (0.03 kg)

• Stud Size: M8 (5/16 in.)

• Size Unit: inches (in)

• Weight Unit: pounds (lb)
