Coaxial Cable Flaring Tool RG6 RG59 F-Connector 4-1/4 Inch

Simplify coaxial cable connector installation with this specialized dual-function tool designed specifically for preparing and installing F-connectors on RG6, RG59, and RG11 cables. Perfect for cable technicians, satellite installers, security system professionals, and DIY home theater enthusiasts, this essential tool streamlines the connector installation process while ensuring proper cable preparation and secure, reliable connections.

Installing F-connectors on coaxial cables presents challenges even for experienced technicians. Thick cables, especially tri-shield and quad-shield varieties, resist connector insertion. Cold weather compounds difficulties by stiffening cable jackets. Without proper cable flaring, connectors slide on with difficulty or damage delicate center conductors. This purpose-built tool addresses these installation challenges through thoughtful dual-function design.

Dual-Function Tool Design

This versatile implement combines two essential cable preparation functions in one compact tool. The flaring end expands cable jackets to facilitate connector insertion, while the insertion end pushes connectors fully onto cables without hand strain. Having both functions in a single tool eliminates juggling multiple implements during installation, speeding workflow and reducing tool clutter.

Cable Flaring Function

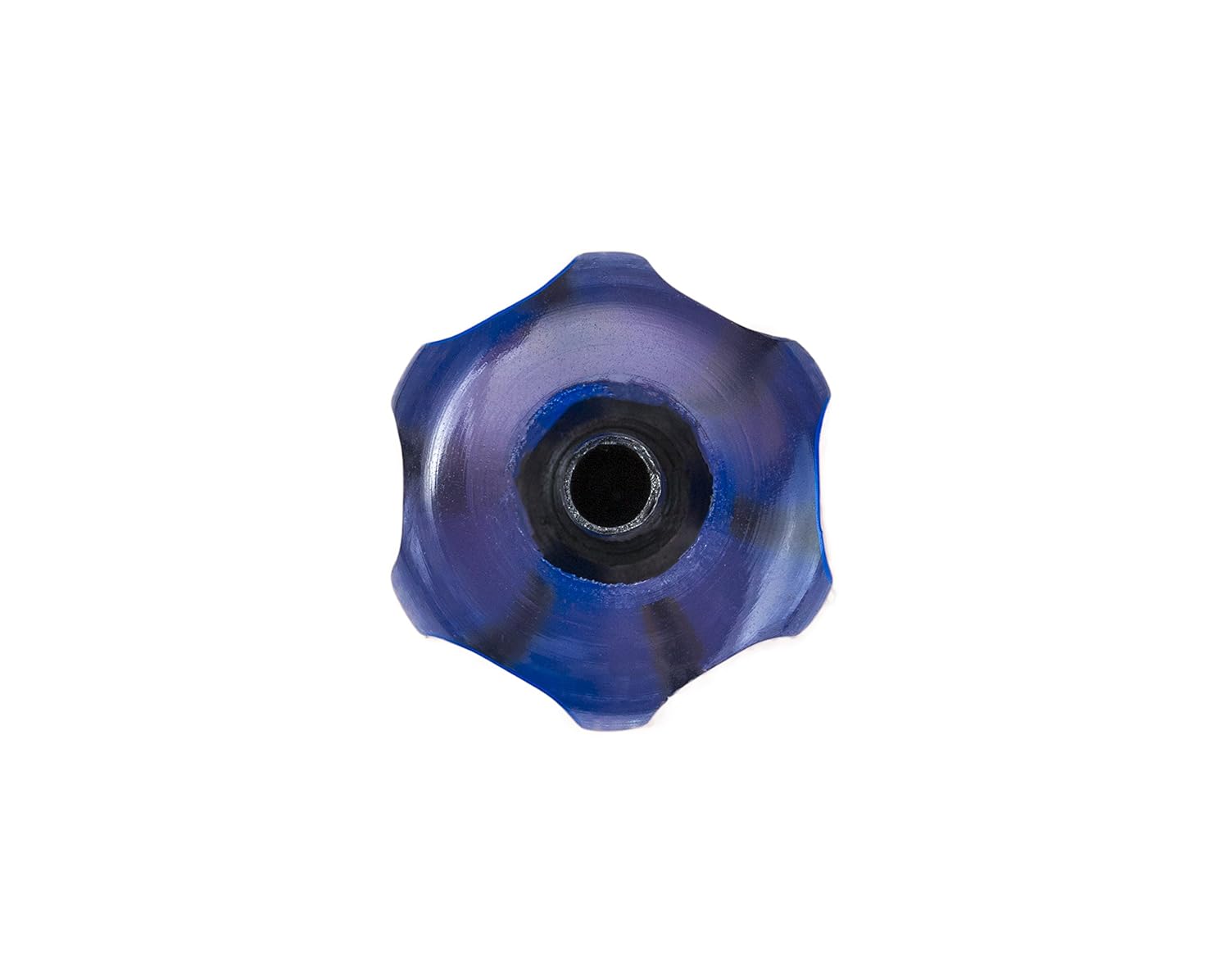

The specially designed flaring end gently expands coaxial cable outer jackets, creating a slight bell shape that guides F-connectors onto cables smoothly. This expansion proves especially valuable with thick tri-shield and quad-shield cables where connector installation otherwise requires excessive force. Proper flaring prevents center conductor damage and ensures connectors seat completely onto cable dielectric.

Precision Insertion Function

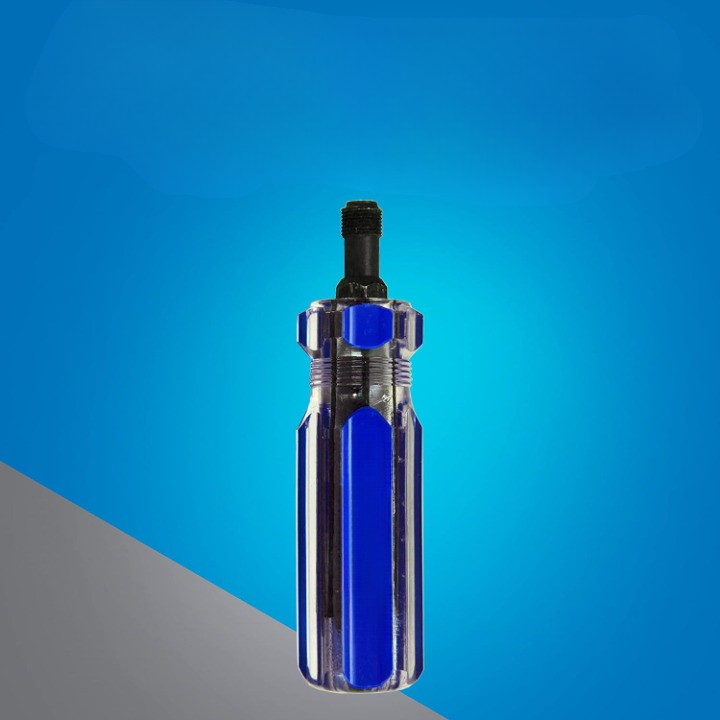

The insertion end features precisely sized geometry matching F-connector dimensions for RG6, RG59, and RG11 cables. This shaped tip applies even pressure around connector circumference, pushing connectors fully onto cables until properly seated. The mechanical advantage provided by the tool eliminates the hand fatigue and finger pain associated with manually forcing stiff connectors onto cables.

Universal Cable Compatibility

Designed to work with standard RG6 coaxial cables used in satellite TV, cable TV, and broadband internet installations, plus RG59 cables common in security camera systems and older installations, and RG11 cables used for long cable runs. The tool accommodates single-shield, dual-shield, tri-shield, and quad-shield cable constructions without limitation.

Quad-Shield and Tri-Shield Optimization

Particularly valuable when working with heavy-duty quad-shield and tri-shield cables where multiple braided shields and foil layers create exceptionally stiff construction. These premium cables provide superior signal quality and interference rejection but present installation challenges. This tool transforms quad-shield connector installation from a frustrating wrestling match into a straightforward process.

Cold Weather Performance

Cable jackets stiffen significantly in cold temperatures, making connector installation dramatically more difficult. This tool maintains effectiveness regardless of temperature, providing consistent performance whether working in climate-controlled environments or outdoors during winter installations. The mechanical advantage overcomes temperature-induced stiffness that defeats manual installation attempts.

Polyethylene and Plenum Cable Compatible

Works effectively with both standard polyethylene jacketed cables used in typical residential installations and plenum-rated cables required for installation in air handling spaces per fire code. The tool accommodates the different jacket materials and construction methods used in these cable varieties.

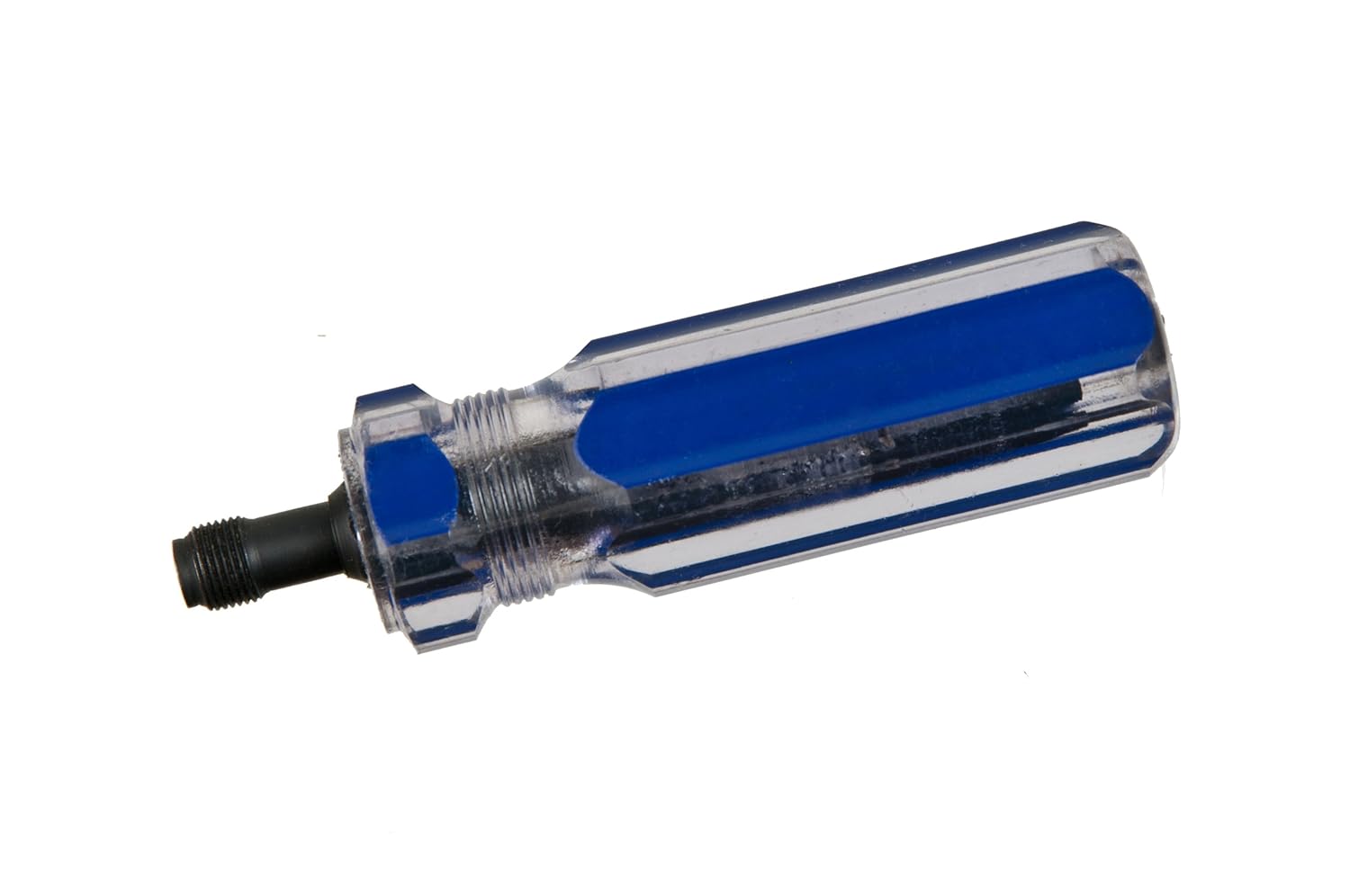

Compact 4-1/4 Inch Length

The space-efficient size fits comfortably in tool pouches, bags, and pockets for immediate accessibility during installations. Despite the compact dimensions, the tool provides adequate leverage for effective cable flaring and connector insertion. The portable size ensures the tool stays accessible wherever cable work demands.

Durable Construction

Manufactured from impact-resistant materials that withstand the rigors of field installations including drops, impacts, and constant use. The robust construction maintains tool geometry and function through years of professional service. Quality materials resist cracking, warping, or degrading from environmental exposure.

Professional Time Savings

By streamlining connector installation, the tool significantly reduces installation time per connection. When multiplied across dozens or hundreds of connections on commercial installations, the time savings translate directly to increased productivity and profitability. Even occasional users benefit from faster, more reliable installations.

Prevents Connection Problems

Properly installed connectors create reliable connections that prevent service calls and customer dissatisfaction. The tool ensures connectors seat fully and correctly, eliminating the loose connections, intermittent signal issues, and complete failures that result from improper installation. This reliability proves especially important for commercial installations where callbacks are costly.

Ergonomic Hand Protection

Eliminates the thumb and finger pain that results from manually forcing dozens of stiff connectors onto cables. The tool's mechanical advantage protects hands from the repetitive stress injuries that affect technicians performing high-volume installations. Even light-duty users appreciate the comfort advantage.

Key Features:

• Dual-function coaxial cable tool
• Flaring end expands cable jackets
• Insertion end installs F-connectors
• Compatible with RG6, RG59, RG11 cables
• Works with tri-shield and quad-shield cables
• Effective in cold weather conditions
• Suitable for polyethylene and plenum cables
• Compact 4-1/4 inch length
• Durable construction
• Prevents connector installation problems
• Reduces installation time
• Ergonomic hand protection

Perfect For:

Cable TV installation, satellite TV installation, broadband internet setup, security camera systems, home theater wiring, commercial A/V installations, telecommunications work, and any application requiring F-connector installation on coaxial cables.

What's Included:

1 x Coaxial cable flaring and insertion tool (4-1/4")

Usage Instructions:

Cable Flaring: After stripping cable per connector manufacturer specifications, insert cable end into flaring end of tool. Twist tool while applying light pressure, working around cable circumference to create uniform flare. Cable jacket should expand slightly in a bell shape.

Connector Insertion: Place F-connector over flared cable end. Position insertion end of tool over connector back. Apply steady pressure while twisting slightly, pushing connector fully onto cable until it seats completely. Connector should be firmly attached with no gaps between connector and cable jacket.

Installation Sequence: Strip cable outer jacket to manufacturer specifications. Fold back braided shield over jacket. Strip dielectric to correct length, exposing center conductor. Trim center conductor to proper length. Use flaring end of tool on jacket. Slide F-connector onto cable. Use insertion end to seat connector completely. Verify connector is tight and properly installed.

Cable Preparation Tips:

Use quality cable stripping tools for clean, accurate jacket and dielectric removal. Avoid nicking center conductor during stripping - damaged conductors create unreliable connections. Ensure braided shield folds back smoothly without gaps. Remove any stray shield wires that could short against center conductor. Flare jacket just enough to ease connector installation without excessive expansion.

Connector Selection:

Always use connectors rated for specific cable type - RG6 connectors don't fit RG59 or RG11 properly. Compression connectors generally provide more reliable connections than crimp or twist-on types. Verify connector specifications match cable shield configuration (single, dual, tri, or quad shield). Weather-rated connectors are essential for outdoor installations.

Maintenance:

Wipe tool clean after use to remove cable jacket residue and oils. Inspect flaring and insertion ends regularly for wear or damage. Store in dry location to prevent corrosion. The simple construction requires minimal maintenance for years of reliable service.

Troubleshooting:

If flaring doesn't ease connector installation, increase flaring slightly - avoid over-flaring which can prevent proper connector seating. If connector won't push fully onto cable, verify correct cable preparation and appropriate connector for cable type. If connector feels loose after installation, cable may be incorrectly stripped or wrong connector type used.

Streamline coaxial cable installations with specialized tools designed specifically for the unique challenges of connector attachment. Work faster, more comfortably, and with greater reliability using purpose-built equipment.
