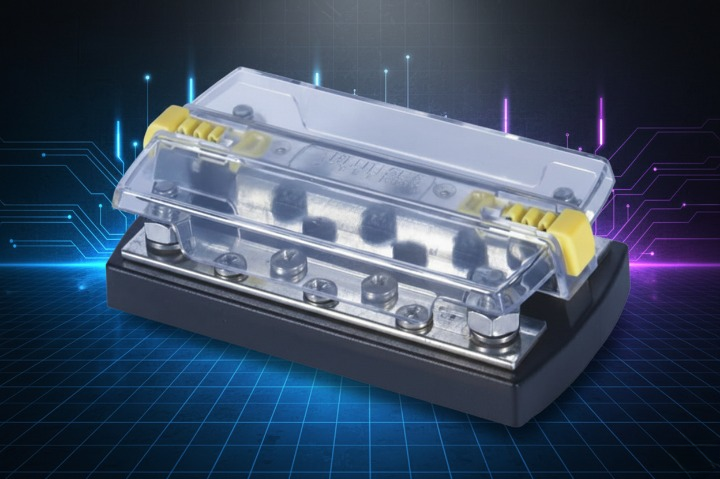

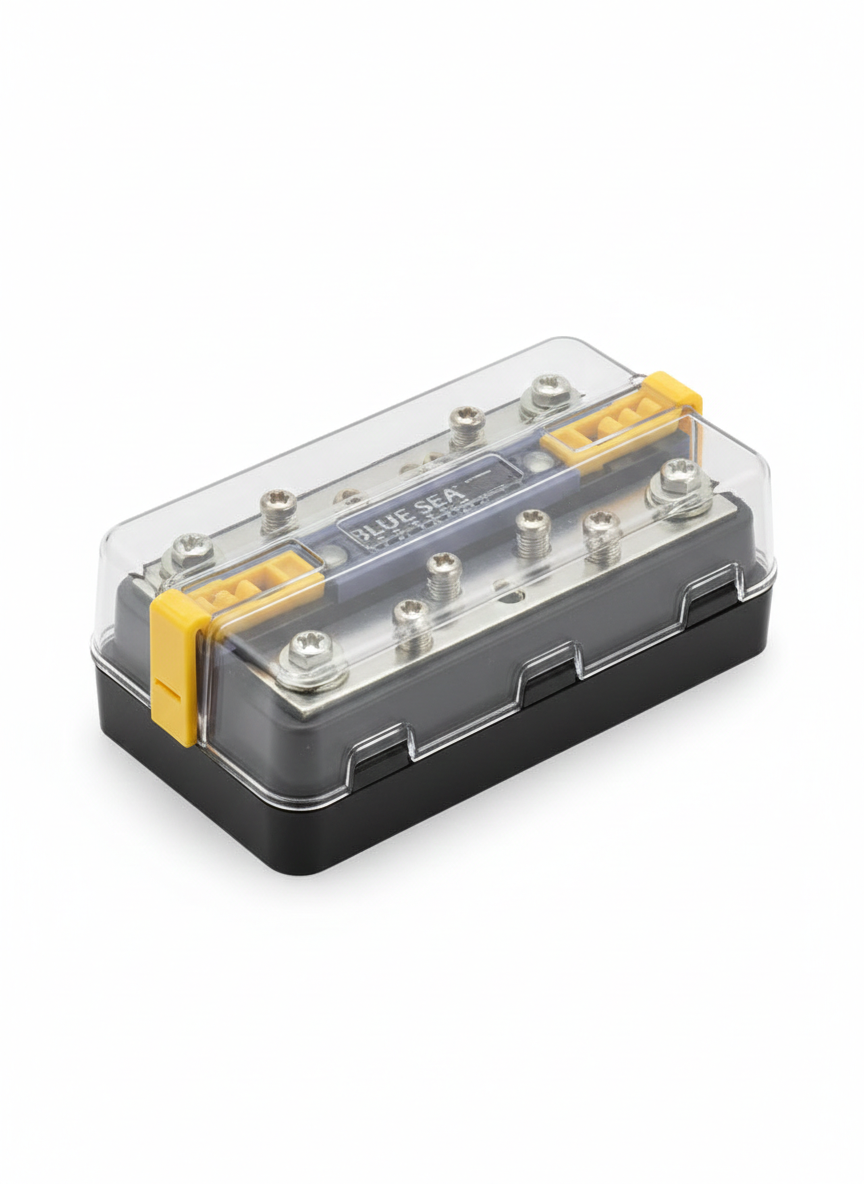

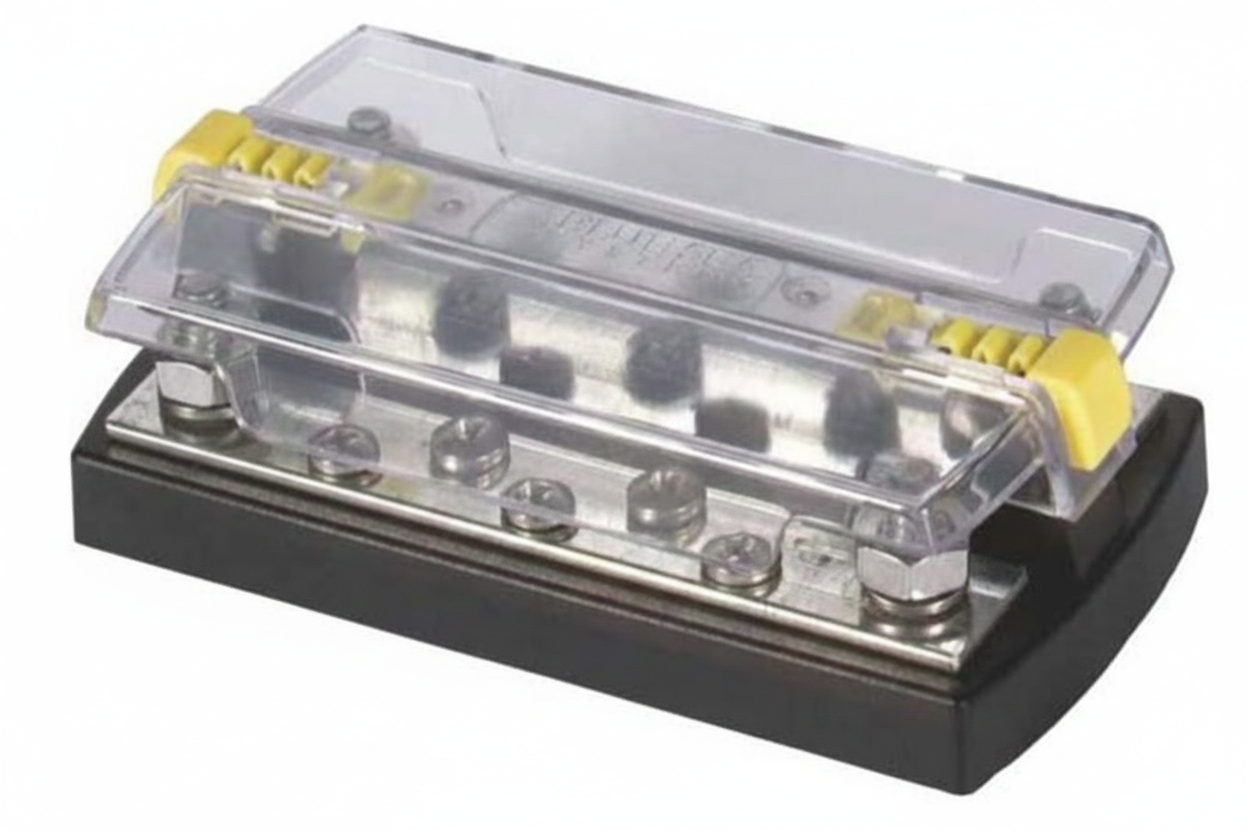

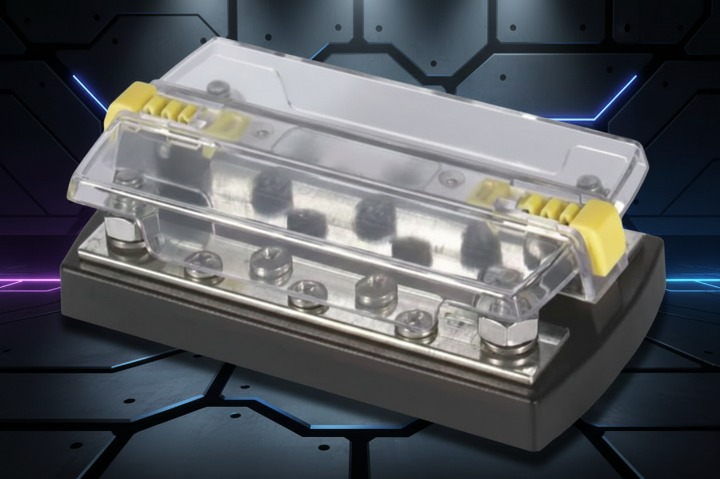

Dual Bus Bar Power Distribution Block 150 Amp 5-Gang Marine

Simplify complex electrical distribution systems with this professional-grade dual bus bar that consolidates multiple connections into organized, accessible terminal blocks. Perfect for marine applications, RVs, automotive custom installations, solar power systems, and any application requiring clean, efficient power distribution from a single source to multiple circuits, this robust component eliminates wire clutter while ensuring reliable electrical connections.

Complex electrical systems often require distributing power from one main source to numerous individual circuits. Without proper distribution blocks, installations become tangled messes of spliced wires that are difficult to troubleshoot, upgrade, or maintain. This dual bus bar system provides two independent distribution points in one compact housing, organizing connections professionally while maintaining electrical safety and code compliance.

Dual Independent Bus Design

Features two separate bus bars within a single housing, allowing independent distribution of positive and negative power, or separation of different voltage systems. This dual configuration eliminates the need for two separate distribution blocks, saving space while providing organized power management. Each bus operates independently to prevent cross-connection and maintain system isolation.

150 Amp Current Rating

Each bus bar safely handles continuous current loads up to 150 amps, providing substantial capacity for powering multiple high-draw circuits simultaneously. This rating accommodates demanding applications including marine electronics, high-power audio systems, auxiliary lighting, inverters, and other equipment requiring robust power distribution without voltage drop or overheating.

5-Gang Configuration

Each bus bar provides five screw terminal positions for connecting individual circuits, supporting up to 10 total circuit connections in the compact dual-bus design. This gang count handles typical distribution needs for medium-sized installations while maintaining manageable size. The organized layout keeps connections accessible for installation, inspection, and troubleshooting.

1/4 Inch Terminal Studs

Heavy-duty 1/4 inch (1/4"-20 thread) studs at each end accept main power cables with appropriate ring terminals. These substantial studs handle large gauge wire required for high-current applications while providing secure mechanical and electrical connections that won't loosen from vibration. The standard thread size works with commonly available hardware.

Secure Screw Terminal Connections

Individual circuit connections utilize screw terminals that firmly clamp wire in place without requiring specialized crimping tools. Simply strip wire to appropriate length, insert into terminal, and tighten screw securely. This connection method accommodates various wire gauges while providing reliable electrical contact that resists vibration and thermal cycling.

Durable Construction Materials

Manufactured from corrosion-resistant materials engineered for demanding environments. The robust construction withstands vibration, moisture exposure, temperature extremes, and physical impacts typical in marine, automotive, and outdoor installations. Quality materials ensure long-term reliability in harsh operating conditions.

Compact Space-Efficient Design

The streamlined profile minimizes installation space requirements while providing substantial current-handling capacity. Mount the bus bar in confined spaces including behind dashboards, in equipment compartments, within electrical panels, or any location requiring organized power distribution without excessive bulk.

High Voltage Rating

Rated for electrical systems up to 300 volts, accommodating both 12V/24V DC systems common in marine and automotive applications, and higher voltage systems found in solar installations and industrial equipment. The substantial voltage rating provides safety margin and prevents breakdown even under voltage spikes or surges.

Multiple Mounting Options

Versatile mounting configuration allows installation using screws through mounting holes, DIN rail mounting for panel installations, or adhesive mounting in applications where drilling isn't feasible. This flexibility accommodates various installation scenarios and mounting surfaces.

Professional Wire Management

Consolidates multiple wire connections into organized, identifiable termination points that simplify system understanding and troubleshooting. The orderly arrangement prevents the tangled wire masses that plague poorly planned installations, making upgrades and repairs straightforward.

Key Features:

• Dual independent bus bar system
• 150 amp continuous rating per bus
• 5 screw terminals per bus (10 total)
• 1/4 inch (1/4"-20) terminal studs
• 2 main studs per bus (4 total)
• 300 volt rating
• Corrosion-resistant construction
• Compact space-efficient design
• Secure screw terminal connections
• Multiple mounting options
• Professional wire management
• Suitable for marine, automotive, RV, solar applications

Perfect For:

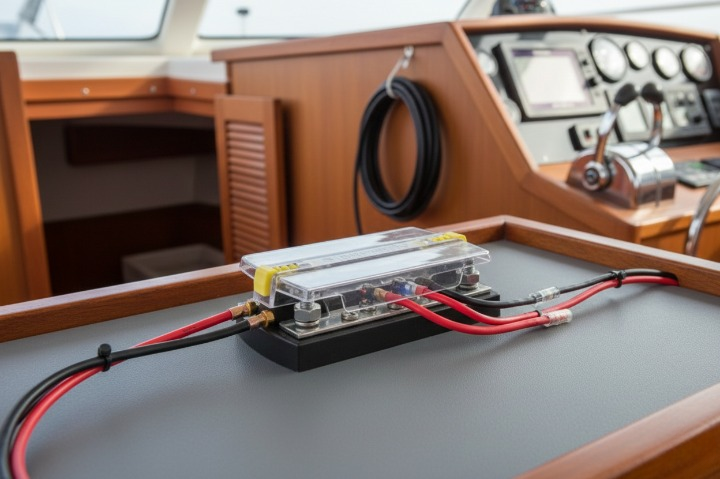

Marine electrical systems, boat wiring, RV power distribution, automotive custom installations, solar power systems, off-grid electrical setups, auxiliary lighting circuits, audio system power distribution, and any application requiring organized distribution of DC power to multiple circuits.

What's Included:

1 x Dual bus bar distribution block (150A, 5-gang per bus), mounting hardware

Installation Instructions:

Plan wire routing and determine optimal bus bar location with adequate clearance for wire connections and service access. Mount securely using appropriate hardware for mounting surface. Connect main power source cables with properly sized ring terminals to terminal studs - one positive and one negative typically. Tighten stud nuts securely using appropriate wrench size. Connect individual circuit wires to screw terminals, ensuring proper polarity for each connection. Strip wire to appropriate length (typically 1/4 to 3/8 inch). Insert stripped wire fully into terminal opening. Tighten terminal screw firmly until wire is secure - verify by tugging gently. Route wires neatly using cable ties or loom. Label connections for future reference. Install appropriate overcurrent protection (fuses or circuit breakers) on each circuit according to wire gauge and load requirements.

Wire Gauge Guidelines:

Select wire gauge appropriate for current load and wire length. Screw terminals typically accommodate 10-16 AWG wire depending on specific terminal design. Main stud connections use larger gauge wire (typically 2-10 AWG) based on total amperage. Always use proper ring terminal size for stud connections. Consult ampacity charts when selecting wire gauge to prevent overheating.

Safety Requirements:

CRITICAL: Install appropriate overcurrent protection (fuses or circuit breakers) on EVERY circuit connected to the bus bar. Never rely on the bus bar rating alone for circuit protection. Use properly sized ring terminals on stud connections - loose terminals create fire hazards. Ensure all connections are tight before applying power. Route wires to prevent chafing on sharp edges. Install in dry, protected location whenever possible. Follow all electrical codes and marine/automotive installation standards applicable to your application.

Maintenance:

Periodically inspect all connections for tightness - vibration can loosen terminals over time. Check for corrosion, especially in marine environments - clean contacts if needed. Verify wire insulation isn't damaged or degraded. Ensure no signs of overheating (discoloration, melted insulation). Tighten any loose connections immediately. Apply dielectric grease to exposed metal terminals in corrosive environments.

Troubleshooting:

If voltage drop occurs, check all terminal tightness and clean any corroded connections. If specific circuit fails, verify wire gauge matches load and overcurrent protection hasn't tripped. If bus bar shows signs of overheating, reduce total connected load or upgrade to higher capacity distribution system. Never bypass overcurrent protection to restore power to failed circuits.

Organize your electrical system professionally with distribution components that deliver reliable performance and clean installations. Eliminate wire tangles while maintaining safe, accessible power management for all connected systems.
