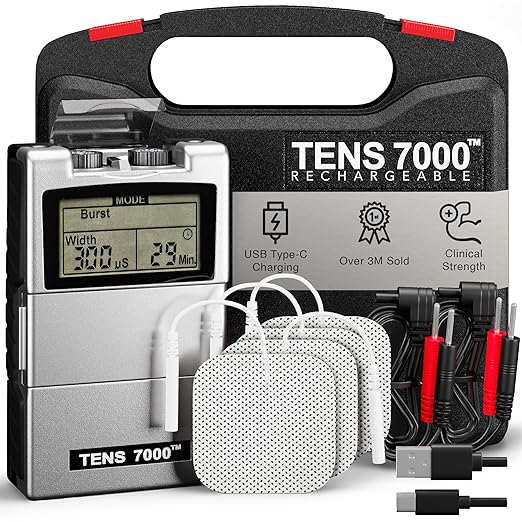

TENS 7000 Rechargeable TENS Unit with 4 Electrode Pads

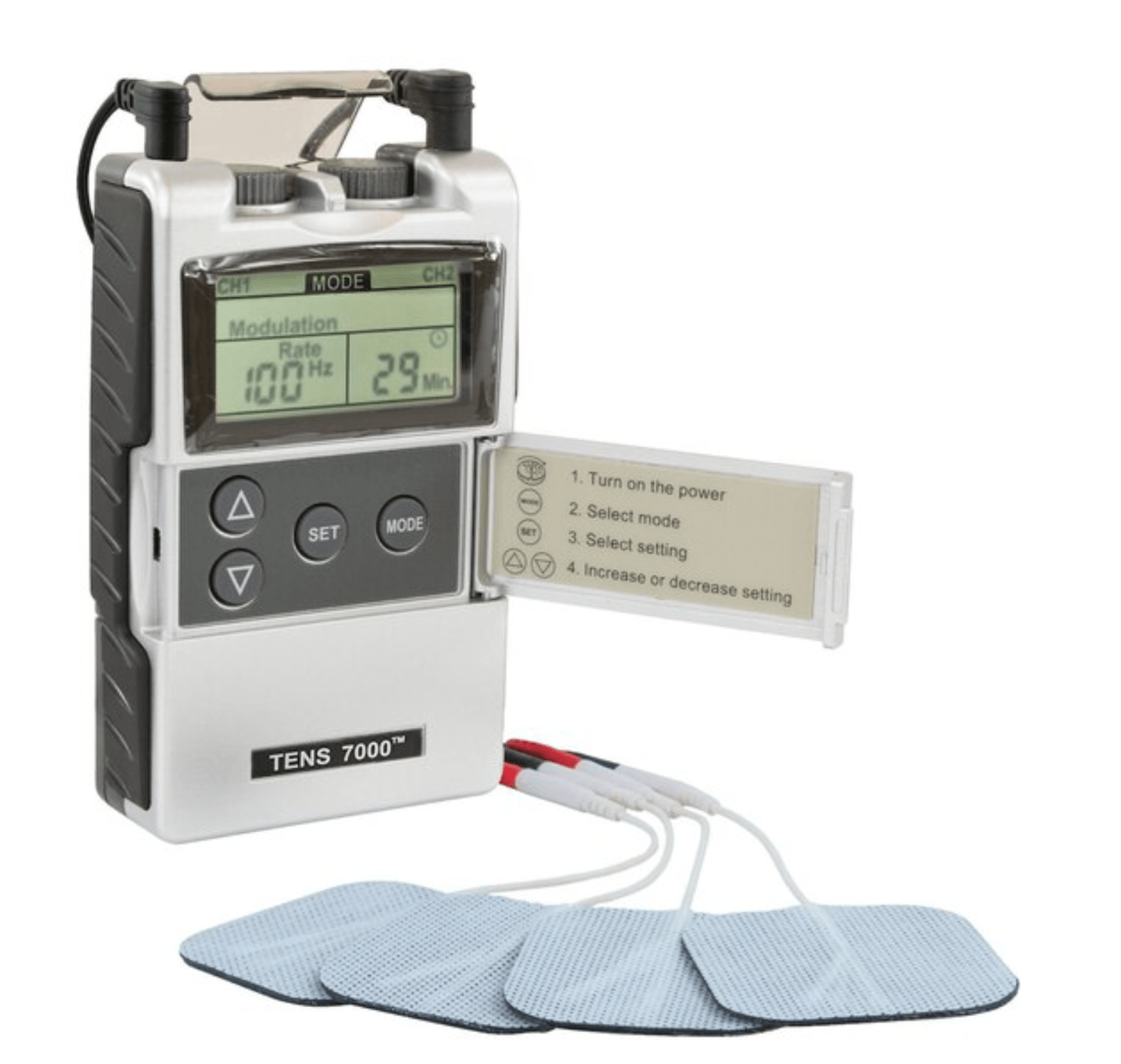

TENS 7000 2nd Edition Digital TENS Unit with 5 Modes and Timer

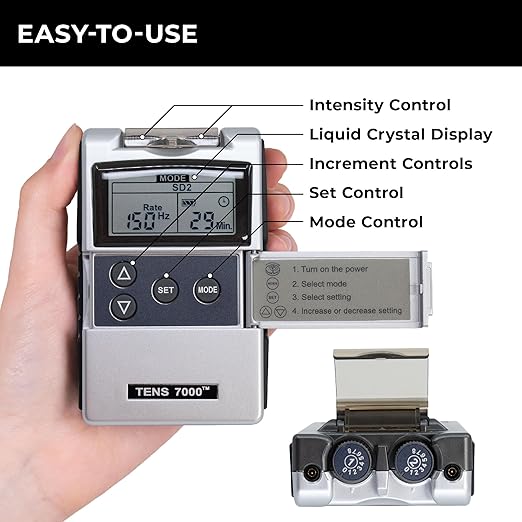

The TENS 7000™ 2nd Edition is one of the most popular, and best valued, digital TENS units on the market. This Digital TENS unit is a big improvement over previous models. Proven to be among the most durable and easy-to-use TENS units out there, the upgraded digital processor is more precise and accurate than ever before. This unit is great for users seeking a digital device that is also equipped with physical amplitude knobs. The TENS 7000 is a preferred doctor's choice for effective pain relief.

Recommended For:

• Immediate relief of acute or chronic pain
• Acute or chronic pain relief for the back, feet, shoulders, neck

• Relaxation of muscle spasms
• Increasing local blood circulation
• Immediate post-surgical stimulation
• Maintaining or increasing range of motion

Product Features & Specs:

• Channels: Dual Channel, for use with 2 or 4 electrodes
• Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load each channel
• Wave Form: Asymmetrical Bi-Phasic Square Pulse
• Pulse Rate: 2 - 150 Hz (adjustable), 1Hz per step

• Pulse Width: 50 - 300 µs (adjustable), 10µs per step

• Timer: Adjustable in 5 minute increments from 5 - 60 minutes, or (C) continuous

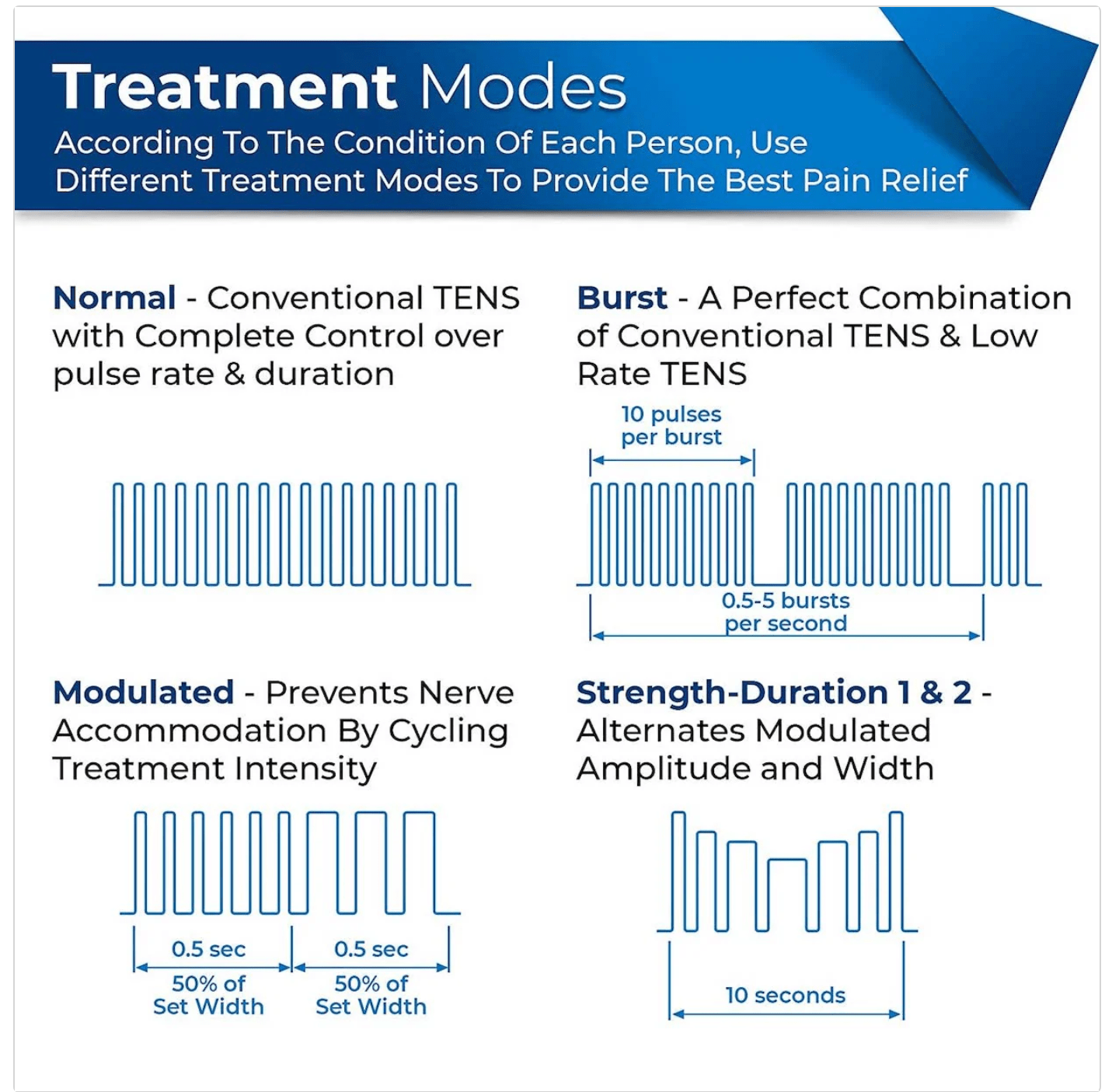

• 5 Program Modes:

• Burst Mode (B): Burst rate - adjustable, 0.5 - 5 Hz; Pulse width - adjustable, 50 - 300 µs; Frequency fixed = 100 Hz
• Normal Mode (N): Pulse rate and pulse width are adjustable. Generates continuous stimulation based on setting value.

• Modulation Mode (M): Combination of pulse rate and pulse width modulation. Total cycle time = 1 second.

• Strength-Duration Mode (SD1): Consists of automatic modulation intensity and pulse width in 40% range. The intensity is always increasing, with the pulse width decreasing, and vice versa. Total cycle time = 10 seconds.

• Strength-Duration Mode (SD2): Consists of automatic modulation intensity and pulse width in 70% range. The intensity is always increasing, with the pulse width decreasing, and vice versa. Total cycle time = 10 seconds.
• Patient Compliance Meter: This unit can store up to 60 sets of operation records. Total recorded time is 999 hours.
• Low Battery Indicator: A low battery indicator will show up on the LCD screen when the battery power is low.

• Dimensions: 4" (L) x 2.4" (W) x 1" (H)

• Weight: 5.3 oz (includes battery)
• Power Source: 1x 9-volt Heavy Duty Battery
• Voltage: 0 - 50V (Load: 500 ohm)
• Comes with Safety Amplitude Cap
• FDA-Approved for Over-The-Counter Sale

• 1 Year Manufacturer Warranty

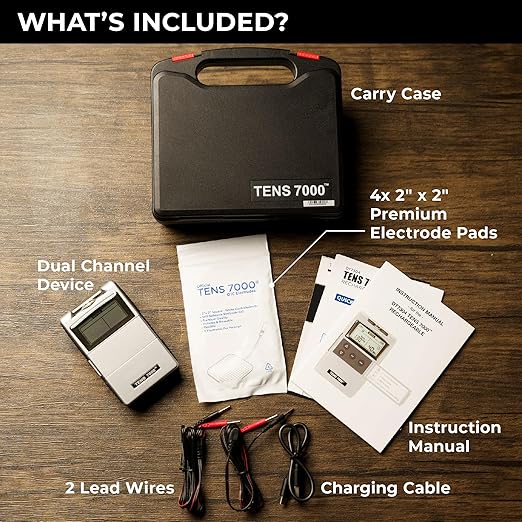

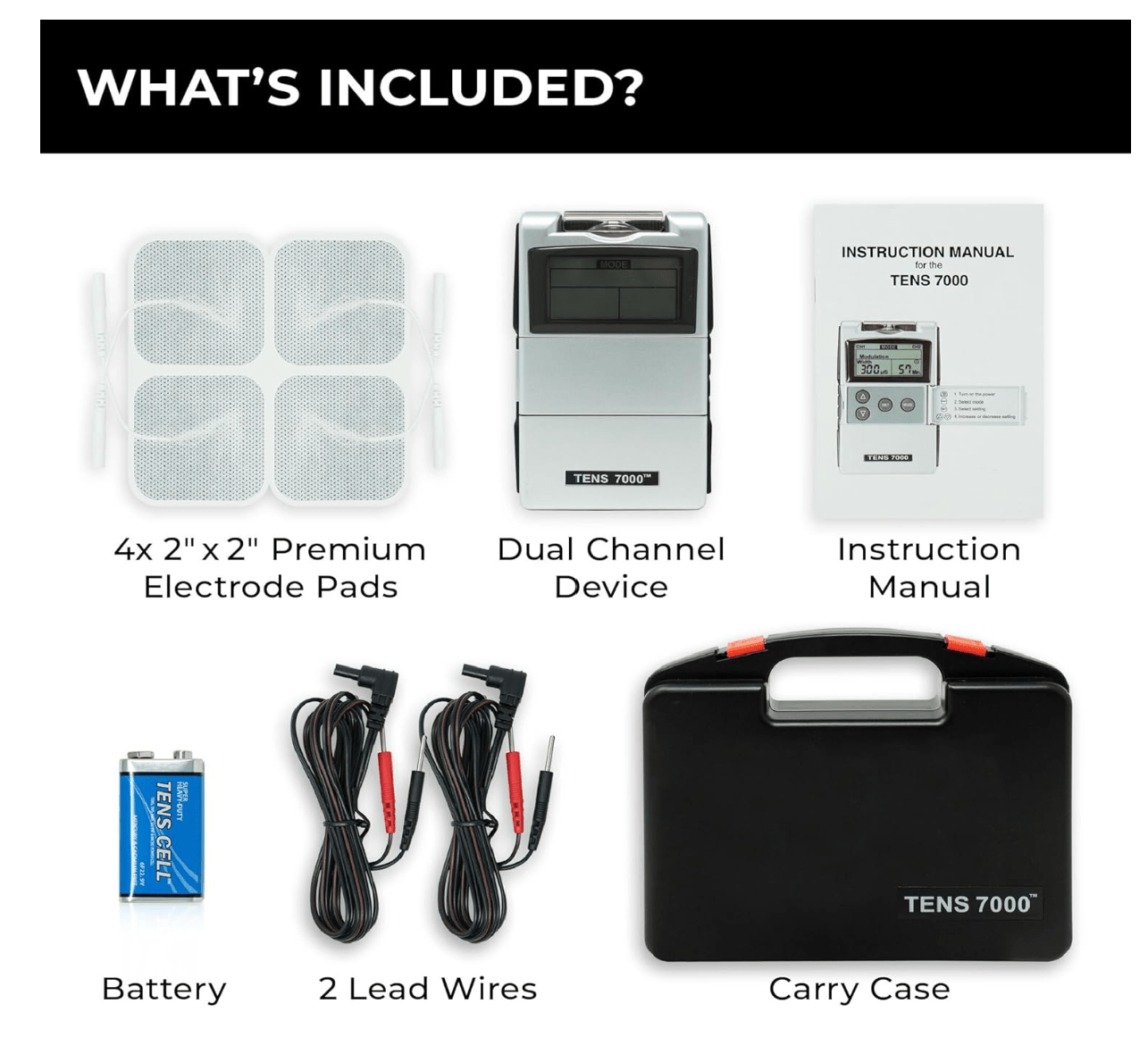

Package Includes Everything Needed To Start Treatment Right Away:

• 1x TENS 7000 Stimulator
• 1x Sturdy Belt Clip

• 2x pairs of 45" Lead Wires
• 1x Pack of Four Self-Adhesive Reusable Electrodes
• 1x 9V Battery
• Hard Plastic Carrying Case
• Quick Start Guide
• Instruction Manual
